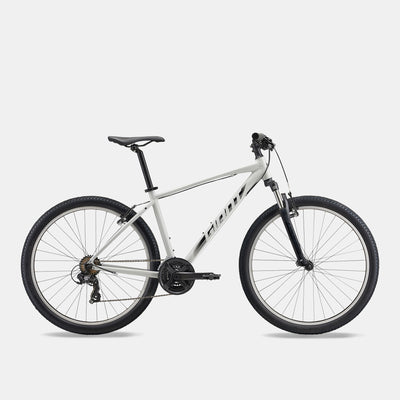

PUSH THE PACE ON CLIMBS, AND LET LOOSE ON THE DESCENTS. THIS ALUMINUM HARDTAIL GIVES YOU A FEEL FOR THE TRAIL WITH BALANCED, CONFIDENT HANDLING AND A PLUSH SUSPENSION FORK.
KEY PERFORMANCE FACTORS
Proven alloy performance
ALUXX aluminum frameset is hand-built in-house by the world leader in aluminum engineering.
Balance and stability
Frame geometry is designed to optimize the balance and roll-over capabilities of 29-inch wheels or the liveliness of 27.5-inch wheels (depending on frame size).
XC control
The suspension fork offers either 80mm or 100mm of smooth travel for added XC control.
Specs
Sizes: 27.5: XS, S 29: S, M, L, XL
Colors: Good Grey, Amber Glow
Frame: ALUXX-Grade Aluminium, disc
Fork: SR Suntour XCE, QR, alloy steerer XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) M: 100mm travel (29), L: 100mm travel (29) XL: 100mm travel (29)
Shock: None

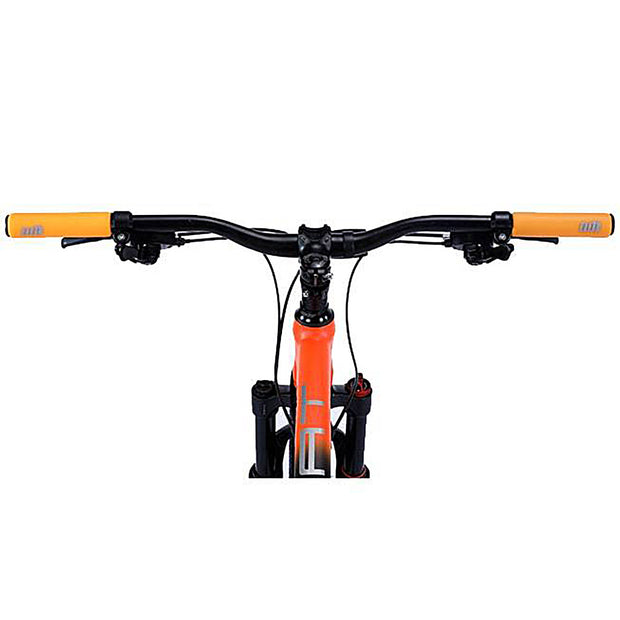

Handlebar: Giant Connect Trail, 31.8mm
Grips: Giant Sole-O
Stem: Giant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5) / 50mm (29) M: 60mm (29) L: 70mm (29) XL: 80mm (29)
Seatpost: Giant Sport, 30.9mm
Saddle: Giant custom
Pedals: MTB caged
Shifters: microSHIFT TS39, 2Ă—8
Front Derailleur: microSHIFT FD-M282
Rear Derailleur: Shimano Altus M310
Brakes: Tektro TDK143, hydraulic, Tektro rotors [F]180mm, [R]160mm
Brake Levers: Tektro TDK143
Cassette: Shimano Deore HG200, 12Ă—32
Chain: KMC 8.3
Crankset: Shimano FC-M315, 22/36 XS: 170mm (27.5) S: 170mm (27.5) / 170mm (29) M: 175mm (29), L: 175mm (29) XL: 175mm (29)
Bottom Bracket: Cartridge
Rims: Giant GX03V 29 or 27.5, alloy, double wall
Hubs: Alloy, sealed bearing
Spokes: Stainless, 14g
Tires: Kenda Booster 27.5 or 29×2.2″, wire bead
Extras: 2.4″ max tire size, 32t max chainring size
Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality, weight can vary based on size, finish hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
